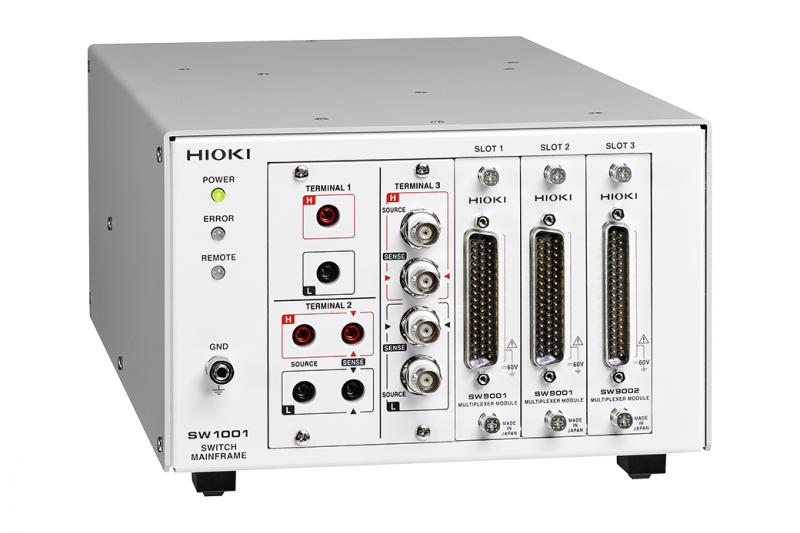

SWITCH MAINframe SW1001



Packed with Features to Assure Accuracy in Multi-channel Battery Testing



The SW1001 is a switch mainframe for housing up to 3 units of SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells.



Key Features:

- Switch between voltmeter and battery tester while testing

- SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)

- Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s. [*1])

- For OCV measurement, internal resistance measurement, and external potential measurement of battery cells

- Measure battery modules up to 60 V DC
